Solar Pcu

Product Details:

Share Your Product:

15000 INR/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Solar Pcu Price And Quantity

Price 15000 INR/Piece
Minimum Order Quantity 1 Piece

Solar Pcu Trade Information

FOB Port Chennai
Payment Terms Letter of Credit (L/C) Cash in Advance (CID) Cheque Cash Advance (CA)
Supply Ability 100 Piece Per Month
Delivery Time 3-4 Days
Packaging Details Wooden/Cotton Box
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

Solar Pcu

Main Functional Features of Solar Charge Controllers:

2KW/3KW/5KW On-Grid Inverter with Energy Storage
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable battery charging current suits different types of batteries
Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup
Built-in Timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus and SNMP
Monitoring software for real time status display and control

Specifications:

MODEL	GEESYS 2KW	GEESYS 3KW	GEESYS Plus 3KW	GEESYS 5KW
RATED POWER	2000 W	3000 W	3000 W	5000 W
GRID-TIE OPERATION
PV INPUT (DC)
Maximum DC Power	2250W	3200W	4500W	7500W
Nominal DC Voltage / Maximum DC Voltage	300 VDC / 350 VDC	360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage	80 VDC / 120 VDC	116 VDC / 150 VDC
MPP Voltage Range	150 VDC ~ 320 VDC	250 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current	1 / 1 x 15 A	1 / 1 x 13 A	1 / 1 x 18 A	2 / 2 x 15 A
GRID OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	208/220/230/240 VAC
Output Voltage Range	88 - 127 VAC*	184 - 264.5 VAC*
Nominal Output Current	18 A	13 A	13 A	21 A
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	95%	96%	96%	96%
European Efficiency@ Vnominal	94%	95%	95%	95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	60 - 70 VAC / 85 VAC	120 - 140 VAC / 180 VAC	120 - 140 VAC / 180 VAC	120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range	80 - 130 VAC	170 - 280 VAC	170 - 280 VAC	170 - 280 VAC
Number of MPP Trackers / Maximum Input Current	30 A			40 A
PV INPUT (DC)
Maximum DC Voltage	350 VDC	500 VDC
MPP Voltage Range	150 VDC ~ 320 VDC	250 VDC ~ 450 VDC
Maximum Input Current	1 / 1 x 15 A	1 / 1 x 13 A	1 / 1 x 18 A	2 / 2 x 15 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	202/208/220/230/240 VAC
Output Waveform	Pure Sinewave
Efficiency (DC to AC)	90%	93%	93%	91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	300 VDC / 350 VDC	360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage	80 VDC / 120 VDC	116 VDC / 150 VDC
MPP Voltage Range	150 VDC ~ 320 VDC	250 VDC ~ 450 VDC
Maximum Input Current	1 / 1 x 15 A	1 / 1 x 13 A	1 / 1 x 18 A	2 / 2 x 15 A
GRID OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	208/220/230/240 VAC
Output Voltage Range	88-127 VAC*	184 - 264.5 VAC*
Nominal Output Current	18 A	13 A	13 A	21 A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	60 - 70 VAC / 85 VAC	120 - 140 VAC / 180 VAC	120 - 140 VAC / 180 VAC	120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range	80 - 130 VAC	170 - 280 VAC	170 - 280 VAC	170 - 280 VAC
Maximum AC Input Current	30 A			40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	101/110/120/127 VAC	202/208/220/230/240 VAC
Efficiency (DC to AC)	90%	93%	93%	91%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Charging Current	25A			60A
GENERAL
PHYSICAL
Dimension, D X W X H (mm)	420 x 415 x 170			505 x 440 x 135
Net Weight (kgs)	15.5			18.5
INTERFACE
Communication Port	RS-232/USB
Intelligent Slot	Optional SNMP, Modbus, and AS-400 cards available
ENVIRONMENT
Humidity	0 ~ 90% RH (No condensing)
Operating Temperature	0 to 40^oC		0 to 40°C	-10 to 55°C
Altitude	0 ~ 1000 m**

Applications:

Domestic Applications
Corporate Applications
Institutional Applications

Other Products in 'Power Backup Systems' category

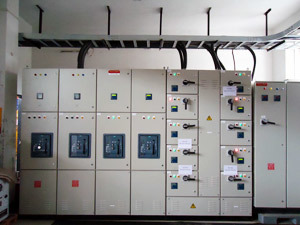

Solar ACDB Price : 35000 INR/Box Minimum Order Quantity : 1 Material : Polycarbonate Color : Light Grey Switch Mode : Automatic Switch Output Voltage : 400 Volt (V) Max Voltage : 1000 Volt (V) Max System Voltage : 1500 Volt (V) Warranty : 1year Product Type : Other Number of Cells : 2472 Power : 30 kw Watt (w) Operating Temperature : 0 to 95 Celsius (oC)

Send Inquiry

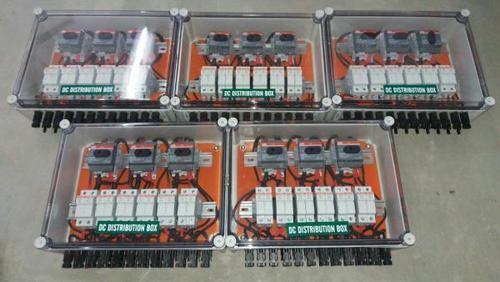

SOLAR STRING JUNCTION BOX Price : 45000 INR/Piece Minimum Order Quantity : 2 Material : Poly carbonate Color : Light Grey Switch Mode : Automatic Switch Output Voltage : 1000 Volt (V) Max Voltage : 1000 Volt (V) Max System Voltage : 1500 Volt (V) Warranty : 1year Product Type : Other Number of Cells : 3672 Power : 50 kwp Watt (w) Operating Temperature : 0 to 95 Celsius (oC)

Send Inquiry

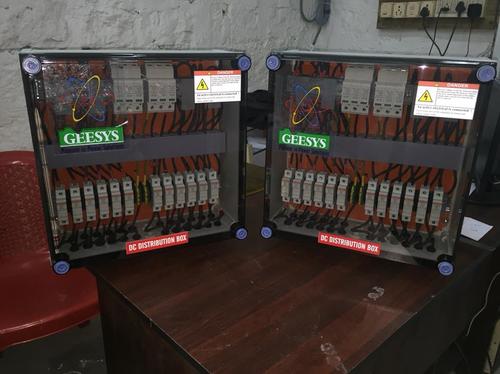

SOLAR ARRAY JUNCTION BOX 8in 8out Price : 23500 INR/Piece Minimum Order Quantity : 5 Material : Polycarbonate Color : Light Grey Switch Mode : Automatic Switch Output Voltage : 1000VDC Volt (V) Max Voltage : 1000 Volt (V) Max System Voltage : 1500 Volt (V) Warranty : 1year Product Type : Other Number of Cells : 24 Power : 25KWP Volt (v)

Send Inquiry

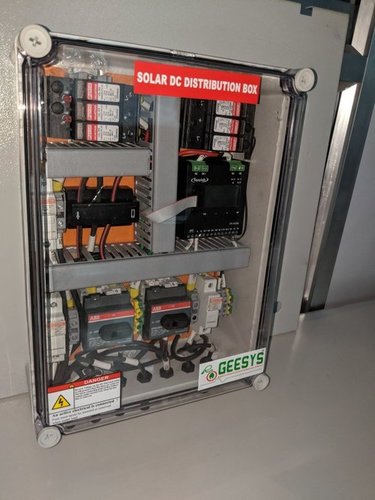

Array Junction Box Price : 4000 INR Minimum Order Quantity : 10 Material : Polycarbonate Color : Light Grey Switch Mode : Automatic Switch Output Voltage : 415 Volt (V) Max Voltage : 1000 Volt (V) Max System Voltage : 1500 Volt (V) Warranty : 1year Product Type : Other Number of Cells : 3648 Power : 10000 Watt (w)
